From Paper to Code: Understanding and Reproducing “Fourier ptychographic microscopy image stack reconstruction using implicit neural representations”

From Paper to Code: Understanding and Reproducing “Fourier ptychographic microscopy image stack reconstruction using implicit neural representations”#

Code: GitHub Repository, Source Code in My Repo: ../../../../code/NeRF_optics/FPM_INR-main/FPM_INR.py

Paper Reading Notes#

1. Highlights#

To save memory in Fourier Ptychographic Microscopy (FPM), the authors use Implicit Neural Representations (INRs) to model the 3D complex field, rather than explicitly storing each z-slice.
Given an input z-value, FPM-INR can efficiently compute the complex field at that depth.
The entire pipeline is self-supervised and requires no ground-truth labels.
It combines physics-based optical modeling with neural field learning for compact and continuous volumetric reconstruction.

2. Background#

2.1 What is Fourier Ptychographic Microscopy (FPM)?#

Fourier Ptychographic Microscopy (FPM) is a computational imaging technique that enables wide field-of-view (FOV), high-resolution microscopy using simple optics. It works by capturing multiple low-resolution images under varying illumination angles and stitching them together in the Fourier domain [Zheng et al., 2013].

Unlike traditional microscopes that rely on physical lens scanning to get different focus planes, FPM uses a computational model to digitally refocus, correct aberrations, and retrieve both amplitude and phase of the optical field — all without moving parts.

2.2 What is the “Fourier Stack” in FPM?#

In its classic form, FPM reconstructs a single complex image (amplitude + phase) at the focal plane — a process often called the “Fourier stack” or “1-layer FPM”. Each angular illumination provides a shifted slice in Fourier space; by combining them, we recover high-frequency content beyond the native resolution of the objective lens.

However, real-world samples have depth. So how do we reconstruct not just one, but a z-stack — a full 3D volume?

2.3 Why 3D FPM is Hard#

To get 3D volumes, traditional FPM methods reconstruct each z-slice separately. But this brings two big problems:

Too slow: each slice is optimized independently, leading to long reconstruction times.
Too big: storing high-res stacks costs gigabytes per sample — not scalable for digital pathology.

2.4 FPM-INR: Continuous 3D Reconstruction with Neural Fields#

To solve these problems, Zhou et al. (2023) propose FPM-INR, a method that combines physics-based optics with Implicit Neural Representations (INRs).

Here’s the key idea:

Instead of saving every z-slice, use a neural network (MLP) to learn a compact function that maps any 3D coordinate (x, y, z) to image intensity and phase.
This network learns directly from raw measurements using the FPM physical forward model — no pretraining, no black-box hallucinations.

FPM-INR makes real-time, large-scale, and remote FPM imaging practical — opening new doors in biomedical imaging and digital pathology.

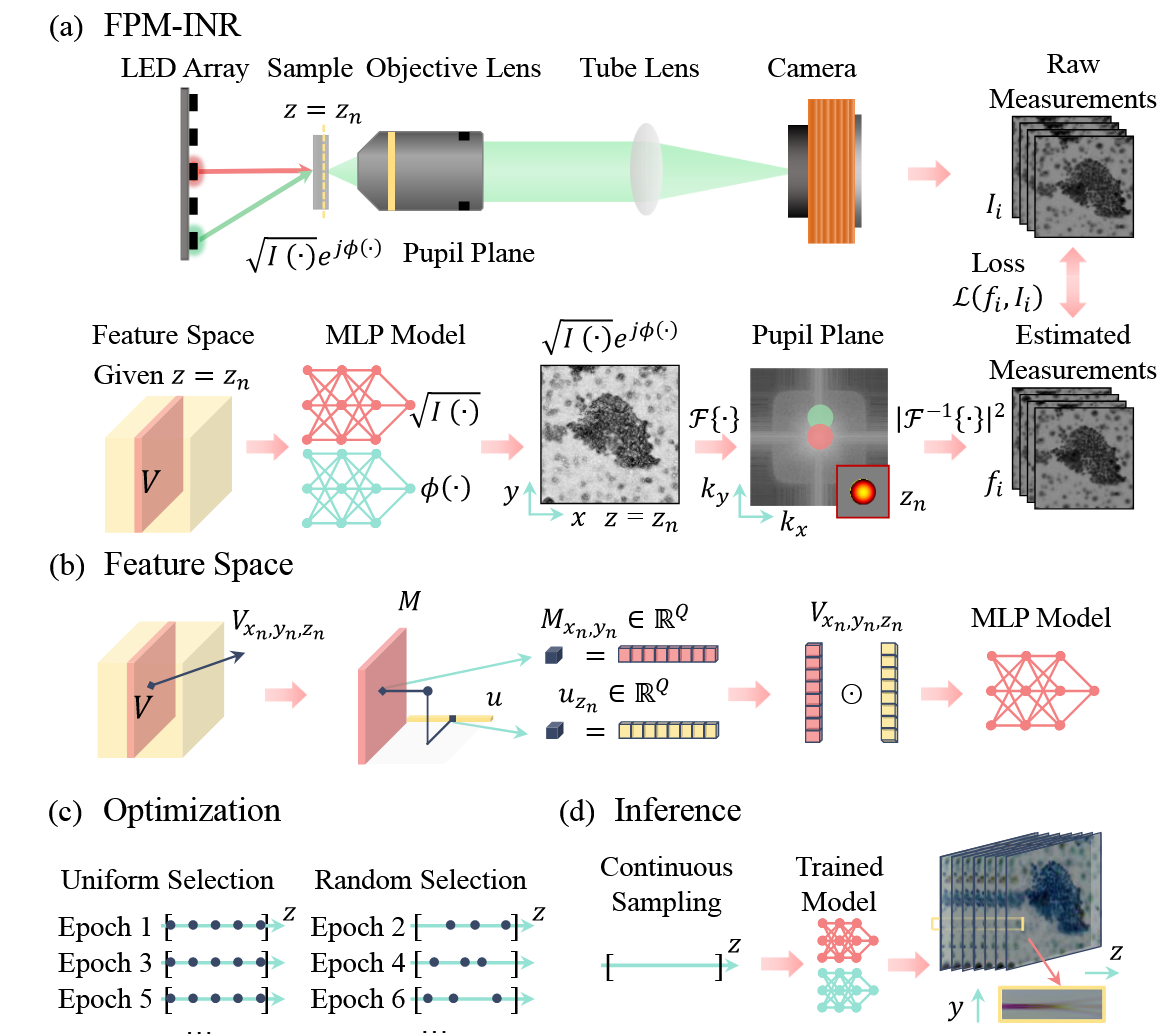

3. Method Overview#

Method Overview behind FPM-INR is to parameterize a 3D image stack using a small neural network and a low-rank feature volume, then optimize both by fitting a physical forward model that simulates how FPM images are generated.

3.1 Forward Model#

FPM-INR incorporates the physics of the imaging system in its optimization. The forward model is given by:

\[ I_i(x, y; z) = \left| \mathcal{F}^{-1} \left\{ O(k_x - k_{x_i}, k_y - k_{y_i}) \cdot P(k_x, k_y; z) \right\} \right|^2 \]

Where:

\(I_i(x, y; z)\) is the intensity image from the \(i\)-th LED,
\(O(k_x, k_y)\) is the object’s Fourier spectrum,
\(P(k_x, k_y; z)\) is the pupil function with defocus phase,
\(\mathcal{F}^{-1}\) denotes inverse Fourier transform.

3.2 Pipeline#

Input: A stack of raw intensity images captured under varying LED illumination angles. No physical z-stack scanning or ground-truth depth labels are required.

Output: A continuous function that maps any 3D coordinate \((x, y, z)\) to a complex optical field (amplitude and phase), enabling digital refocusing and volumetric reconstruction at arbitrary depths.

Representation: The 3D volume is modeled as an implicit function using an MLP, driven by a compact feature space:

A 2D feature map \( M(x, y) \)
A 1D z-vector \( u(z) \)
Combined via Hadamard product: \( V_{x,y,z} = M_{x,y} \odot u_z \)

Supervision: Self-supervised training through a physics-based FPM forward model. The predicted optical field is passed through Fourier optics to simulate intensity measurements, which are compared against real camera captures.

Key Benefit: Once trained, FPM-INR allows continuous inference of any z-plane without retraining, offering efficient and compact 3D imaging without scanning.

References#

Zheng, G., Horstmeyer, R., & Yang, C. (2013). Wide-field, high-resolution Fourier ptychographic microscopy. Nat. Photonics, 7, 739–745. https://doi.org/10.1038/nphoton.2013.187
Bouchama, L., Dorizzi, B., et al. (2023). Fourier ptychographic microscopy image enhancement with bi-modal deep learning. Biomed. Opt. Express, 14, 3172–3189.
Zhou, H., Feng, B. Y., et al. (2023). Fourier ptychographic microscopy image stack reconstruction using implicit neural representations. Optica, 10(12), 1679–1687. https://doi.org/10.1364/OPTICA.505283

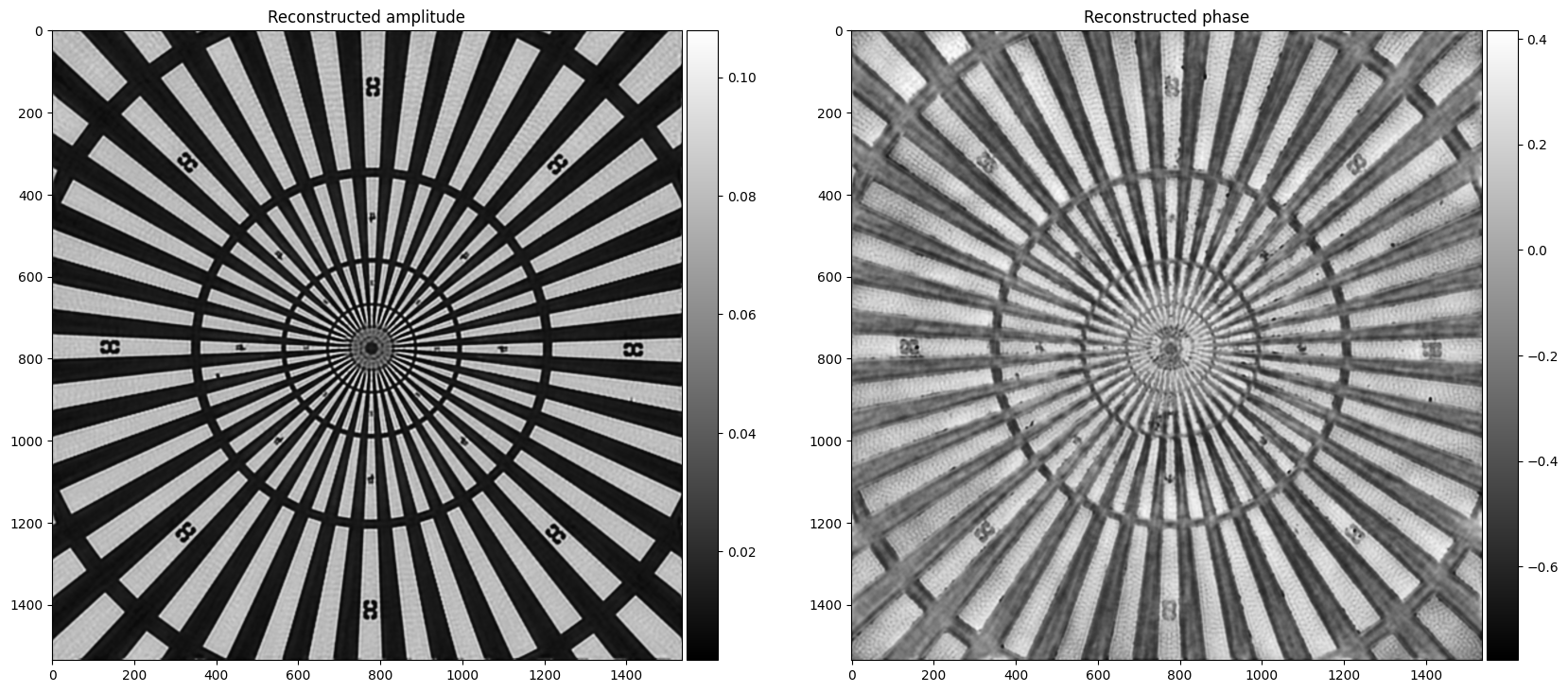

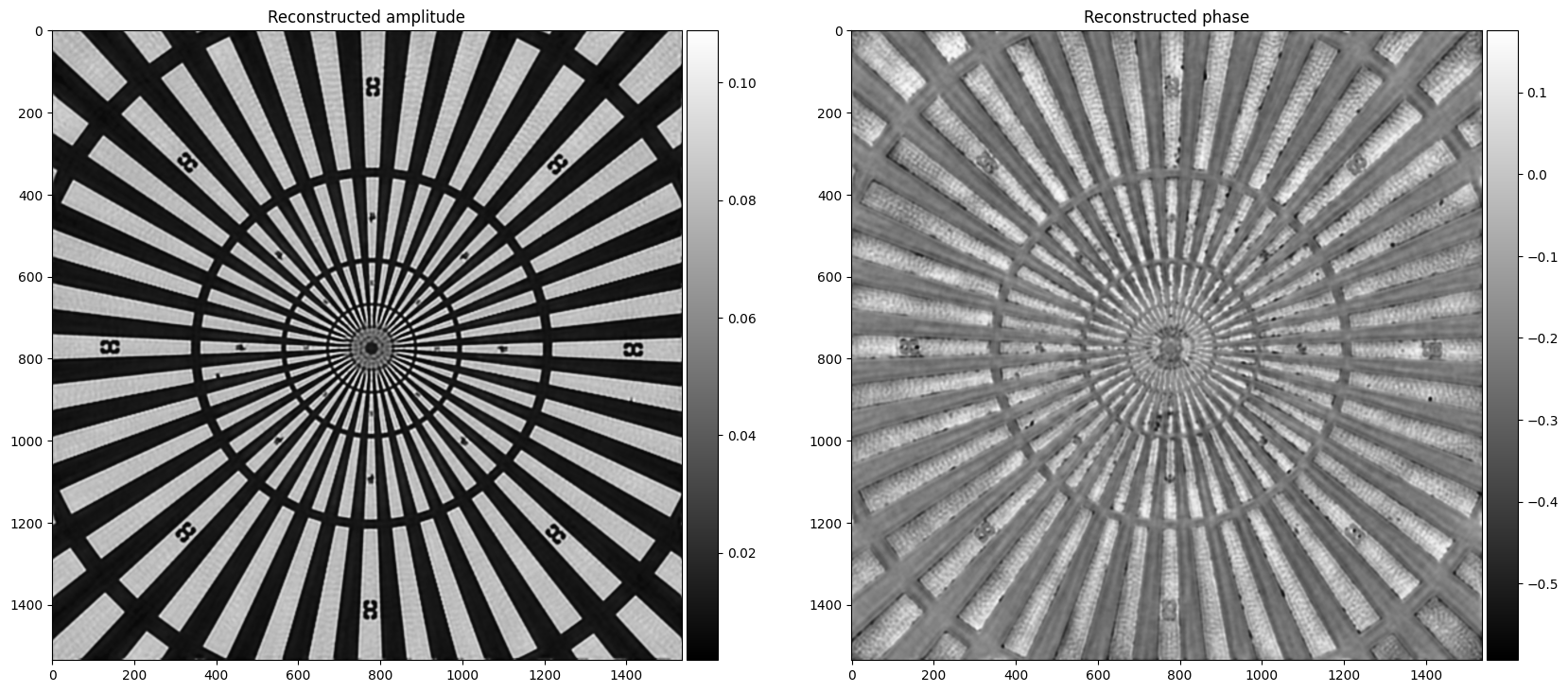

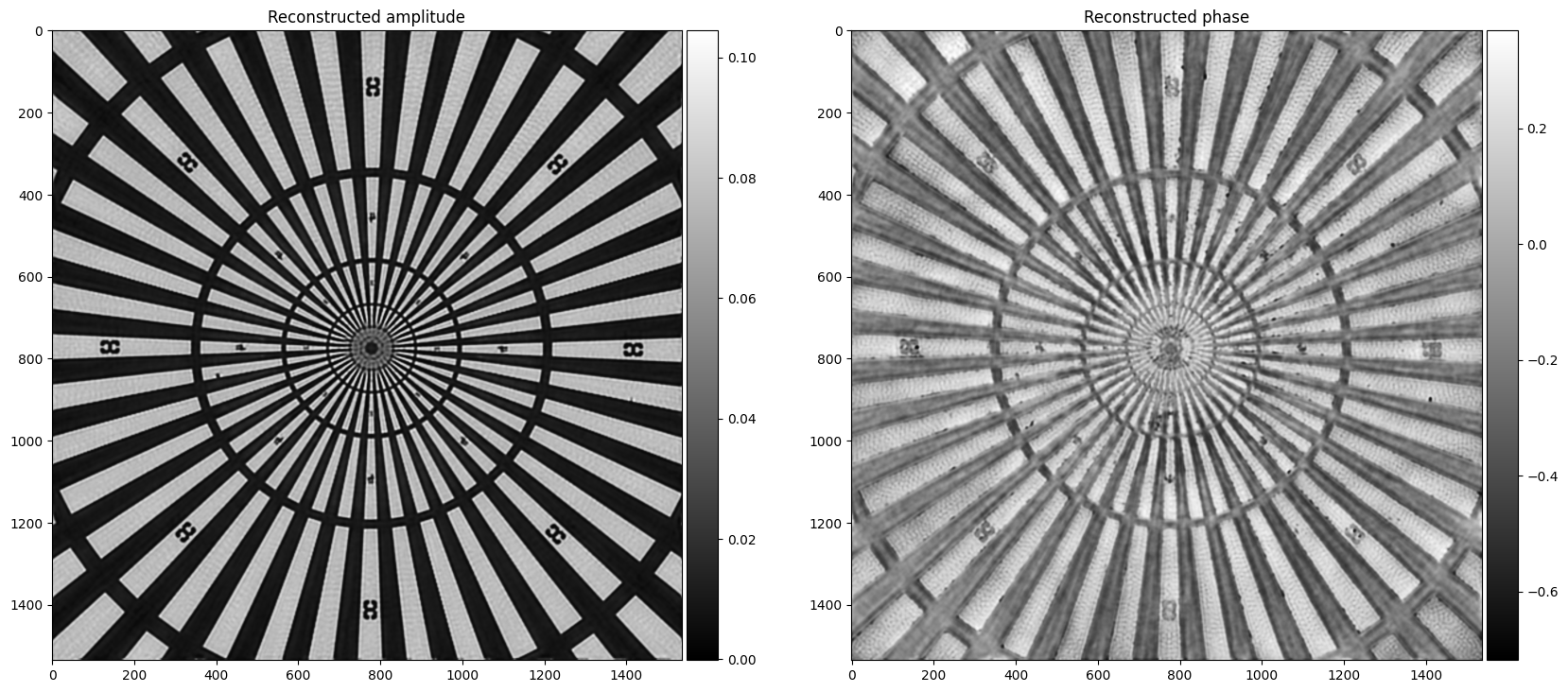

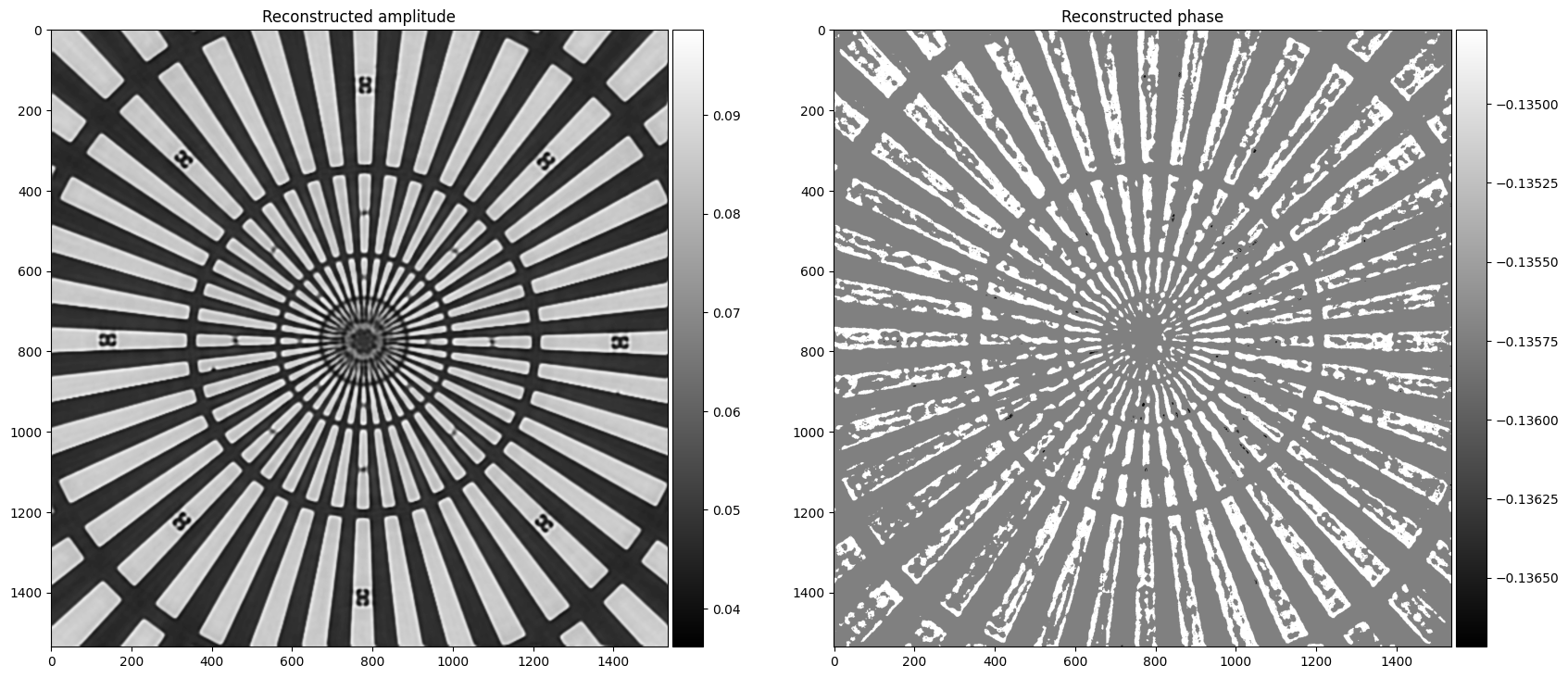

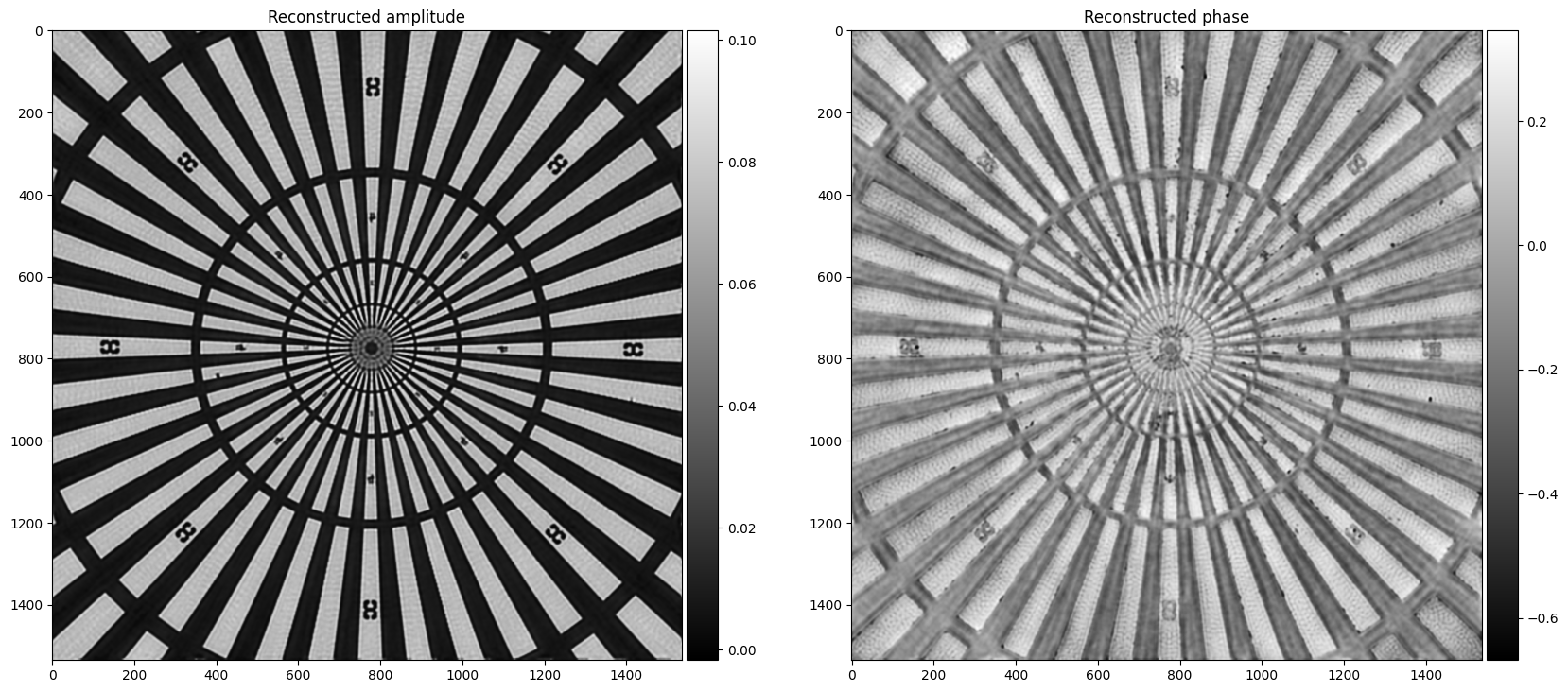

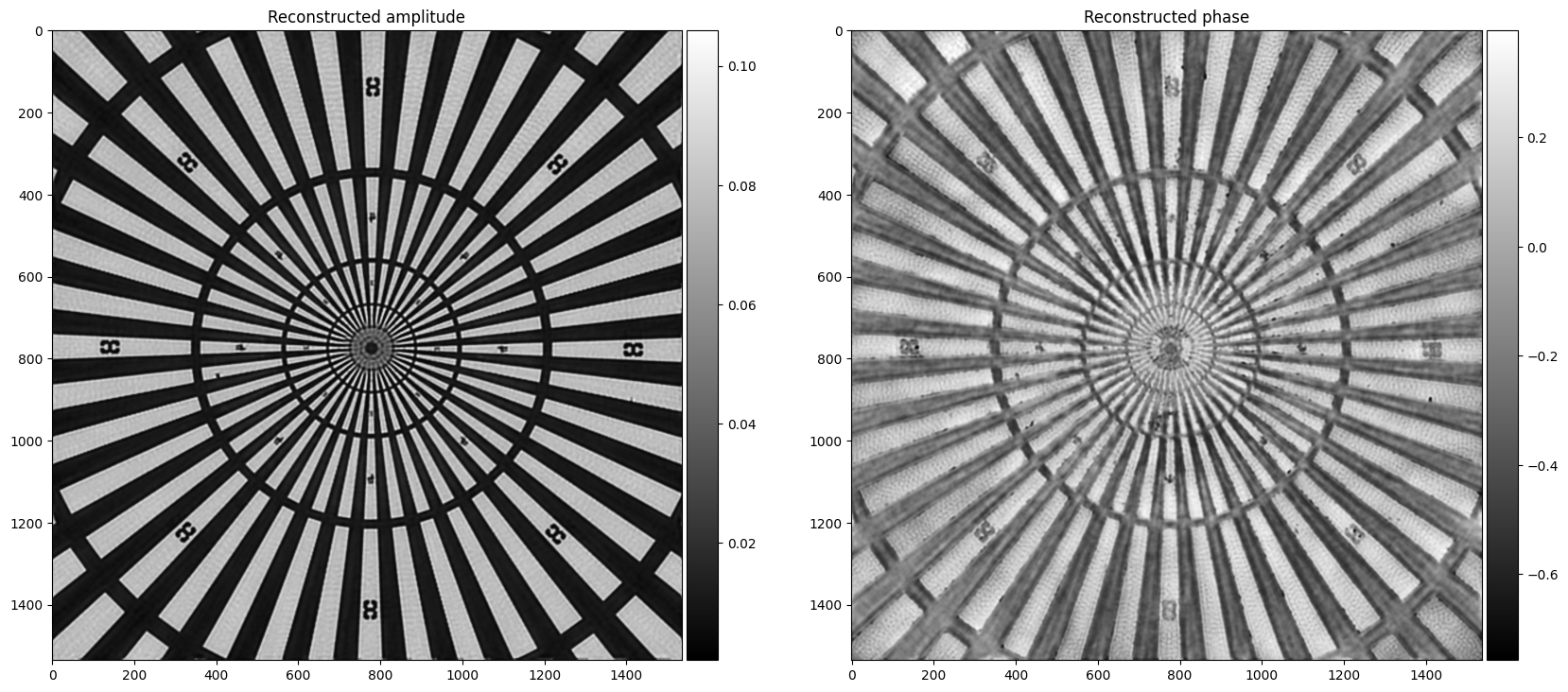

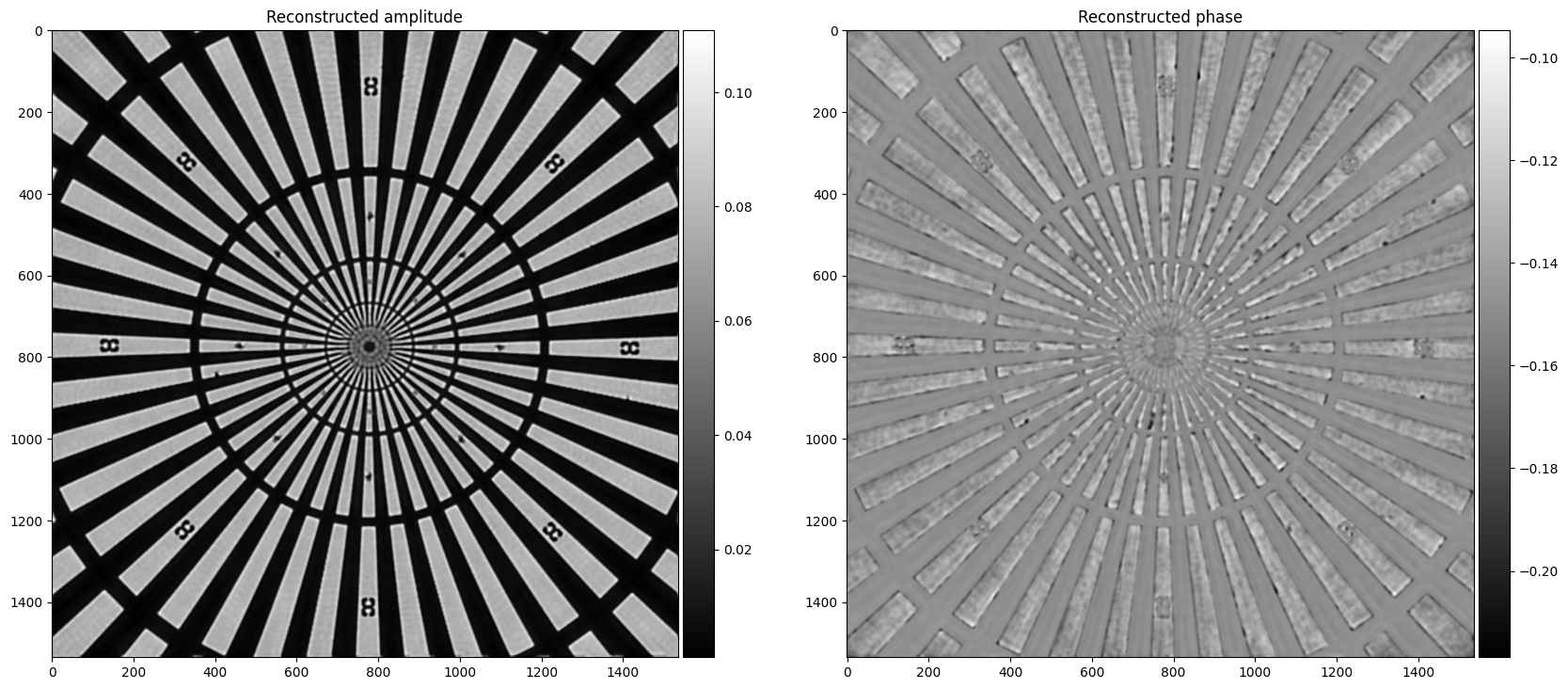

Code Reproduction with Explanation: Predicting Phase and Amplitude#

import os
import sys
print("Current working directory:", os.getcwd())
target_path = os.path.abspath(os.path.join(os.getcwd(), "../../../code/NeRF_optics/FPM_INR-main"))
print("Appending path:", target_path)
sys.path.insert(0, target_path)

import tqdm
import mat73
import scipy.io as sio
import imageio
import argparse
import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1 import make_axes_locatable

import torch
import torch.nn.functional as F

from network import FullModel
from utils import save_model_with_required_grad

torch.manual_seed(0)
torch.backends.cudnn.benchmark = False
torch.backends.cudnn.deterministic = True
torch.cuda.empty_cache()

device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")

parser = argparse.ArgumentParser([])
parser.add_argument("--num_epochs", default=15, type=int)
parser.add_argument("--lr_decay_step", default=6, type=int)
parser.add_argument("--num_feats", default=32, type=int)
parser.add_argument("--num_modes", default=512, type=int)
parser.add_argument("--c2f", default=False, action="store_true")
parser.add_argument("--fit_3D", default=False, action="store_true")
parser.add_argument("--layer_norm", default=False, action="store_true")
parser.add_argument("--amp", default=True, action="store_true")
parser.add_argument("--sample", default="Siemens", type=str)
parser.add_argument("--color", default="r", type=str)
parser.add_argument("--is_system", default="Linux", type=str) # "Windows". "Linux"

args = parser.parse_args([])

fit_3D = args.fit_3D
num_epochs = args.num_epochs
num_feats = args.num_feats
num_modes = args.num_modes
lr_decay_step = args.lr_decay_step
use_c2f = args.c2f
use_layernorm = args.layer_norm
use_amp = args.amp

sample = args.sample
color = args.color
is_os = args.is_system

sample_list = ["BloodSmearTilt", "sheepblood", "WU1005", "Siemens"]
color_list = ['r', 'g', 'b']
if sample not in sample_list:
    print("Error message: sample name is wrong.")
    print("Avaliable sample names: ['BloodSmearTilt', 'sheepblood', 'WU1005', 'Siemens'] ")
if color not in color_list:
    print("Error message: color name is wrong.")
    print("Avaliable color names: ['r', 'g', 'b']")

vis_dir = f"./vis/feat{num_feats}"


if fit_3D:
    vis_dir += "_3D"
    os.makedirs(f"{vis_dir}/vid", exist_ok=True)
os.makedirs(vis_dir, exist_ok=True)

Current working directory: /home/xqgao/2025/MIT/Awesome-Computational-Imaging/chapters/Chapter07_FPM_INR
Appending path: /home/xqgao/2025/MIT/code/NeRF_optics/FPM_INR-main

Get Sub Spectrum#

This function simulates FPM measurements under different LED illuminations.

It takes a complex image, computes its Fourier transform, pads it, extracts sub-spectra for each LED based on given coordinates, applies a spectral mask, and returns the corresponding low-resolution intensity images after inverse FFT.

def get_sub_spectrum(img_complex, led_num, x_0, y_0, x_1, y_1, spectrum_mask, mag):
    O = torch.fft.fftshift(torch.fft.fft2(img_complex))
    to_pad_x = (spectrum_mask.shape[-2] * mag - O.shape[-2]) // 2
    to_pad_y = (spectrum_mask.shape[-1] * mag - O.shape[-1]) // 2
    O = F.pad(O, (to_pad_x, to_pad_x, to_pad_y, to_pad_y, 0, 0), "constant", 0)

    O_sub = torch.stack(
        [O[:, x_0[i] : x_1[i], y_0[i] : y_1[i]] for i in range(len(led_num))], dim=1
    )
    O_sub = O_sub * spectrum_mask
    o_sub = torch.fft.ifft2(torch.fft.ifftshift(O_sub))
    oI_sub = torch.abs(o_sub)

    return oI_sub

Load data#

if fit_3D:
    data_struct = mat73.loadmat(f"../../../Datasets/FPM-INR/{sample}/{sample}_{color}.mat")

    I = data_struct["I_low"].astype("float32")

    # Select ROI
    I = I[0:int(num_modes*2), 0:int(num_modes*2), :]

    # Raw measurement sidelength
    M = I.shape[0]
    N = I.shape[1]
    ID_len = I.shape[2]

    # NAx NAy
    NAs = data_struct["na_calib"].astype("float32")
    NAx = NAs[:, 0]
    NAy = NAs[:, 1]

    # LED central wavelength
    if color == "r":
        wavelength = 0.632  # um
    elif color == "g":
        wavelength = 0.5126  # um
    elif color == "b":
        wavelength = 0.471  # um

    # Distance between two adjacent LEDs (unit: um)
    D_led = 4000
    # free-space k-vector
    k0 = 2 * np.pi / wavelength
    # Objective lens magnification
    mag = data_struct["mag"].astype("float32")
    # Camera pixel pitch (unit: um)
    pixel_size = data_struct["dpix_c"].astype("float32")
    # pixel size at image plane (unit: um)
    D_pixel = pixel_size / mag
    # Objective lens NA
    NA = data_struct["na_cal"].astype("float32")
    # Maximum k-value
    kmax = NA * k0

    # Calculate upsampliing ratio
    MAGimg = 2
    # Upsampled pixel count
    MM = int(M * MAGimg)
    NN = int(N * MAGimg)

    # Define spatial frequency coordinates
    Fxx1, Fyy1 = np.meshgrid(np.arange(-NN / 2, NN / 2), np.arange(-MM / 2, MM / 2))
    Fxx1 = Fxx1[0, :] / (N * D_pixel) * (2 * np.pi)
    Fyy1 = Fyy1[:, 0] / (M * D_pixel) * (2 * np.pi)

    # Calculate illumination NA
    u = -NAx
    v = -NAy
    NAillu = np.sqrt(u2 + v2)
    order = np.argsort(NAillu)
    u = u[order]
    v = v[order]

    # NA shift in pixel from different LED illuminations
    ledpos_true = np.zeros((ID_len, 2), dtype=int)
    count = 0
    for idx in range(ID_len):
        Fx1_temp = np.abs(Fxx1 - k0 * u[idx])
        ledpos_true[count, 0] = np.argmin(Fx1_temp)
        Fy1_temp = np.abs(Fyy1 - k0 * v[idx])
        ledpos_true[count, 1] = np.argmin(Fy1_temp)
        count += 1
    # Raw measurements
    Isum = I[:, :, order] / np.max(I)

else:
    if sample == 'Siemens':
        data_struct = sio.loadmat(f"../../../Datasets/FPM-INR/{sample}/{sample}_{color}.mat")
        MAGimg = 3

    else:
        data_struct = mat73.loadmat(f"../../../Datasets/FPM-INR/{sample}/{sample}_{color}.mat")
        MAGimg = 2


    I = data_struct["I_low"].astype("float32")

    # Select ROI
    I = I[0:int(num_modes), 0:int(num_modes), :] #######################

    # Raw measurement sidelength
    M = I.shape[0]
    N = I.shape[1]
    ID_len = I.shape[2]

    # NAx NAy
    NAs = data_struct["na_calib"].astype("float32")
    NAx = NAs[:, 0]
    NAy = NAs[:, 1]

    # LED central wavelength
    if color == "r":
        wavelength = 0.632  # um
    elif color == "g":
        wavelength = 0.5126  # um
    elif color == "b":
        wavelength = 0.471  # um

    # Distance between two adjacent LEDs (unit: um)
    D_led = 4000
    # free-space k-vector
    k0 = 2 * np.pi / wavelength
    # Objective lens magnification
    mag = data_struct["mag"].astype("float32")
    # Camera pixel pitch (unit: um)
    pixel_size = data_struct["dpix_c"].astype("float32")
    # pixel size at image plane (unit: um)
    D_pixel = pixel_size / mag
    # Objective lens NA
    NA = data_struct["na_cal"].astype("float32")
    # Maximum k-value
    kmax = NA * k0

    # Calculate upsampliing ratio
    # MAGimg = 2
    # Upsampled pixel count
    MM = int(M * MAGimg)
    NN = int(N * MAGimg)

    # Define spatial frequency coordinates
    Fxx1, Fyy1 = np.meshgrid(np.arange(-NN / 2, NN / 2), np.arange(-MM / 2, MM / 2))
    Fxx1 = Fxx1[0, :] / (N * D_pixel) * (2 * np.pi)
    Fyy1 = Fyy1[:, 0] / (M * D_pixel) * (2 * np.pi)

    # Calculate illumination NA
    u = -NAx
    v = -NAy
    NAillu = np.sqrt(u2 + v2)
    order = np.argsort(NAillu)
    u = u[order]
    v = v[order]

    # NA shift in pixel from different LED illuminations
    ledpos_true = np.zeros((ID_len, 2), dtype=int)
    count = 0
    for idx in range(ID_len):
        Fx1_temp = np.abs(Fxx1 - k0 * u[idx])
        ledpos_true[count, 0] = np.argmin(Fx1_temp)
        Fy1_temp = np.abs(Fyy1 - k0 * v[idx])
        ledpos_true[count, 1] = np.argmin(Fy1_temp)
        count += 1
    # Raw measurements
    Isum = I[:, :, order] / np.max(I)

Define Angular Spectrum#

This section prepares some variables for the forward model. It is based on the physical principle described in the paper (Eq. 1):
